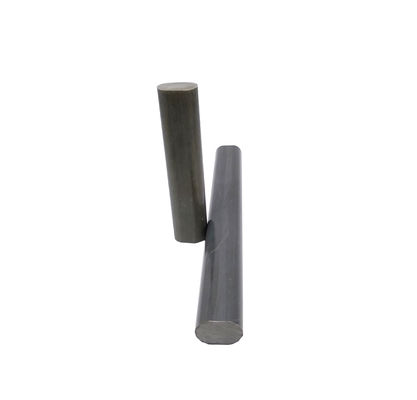

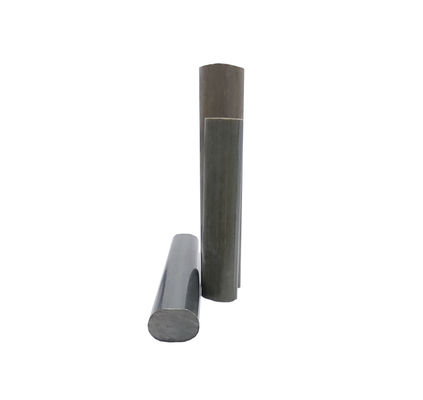

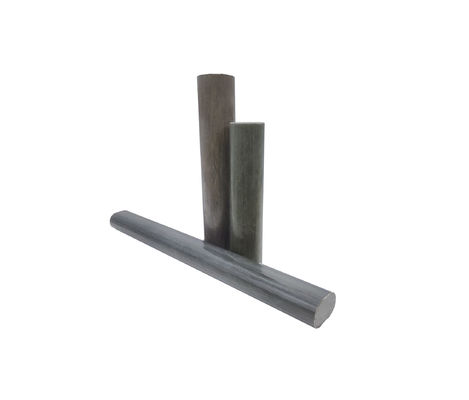

High Voltage Catenary GRP Products/ Grp Railway Rods For Tramway
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | CE/ISO9001 |
| Model Number | / |
| Minimum Order Quantity | 100 pieces |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | L/C ,T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Fiberglass And UV Resistent | Color | Grey,Olive |
|---|---|---|---|
| Port | Shanghai Or Other Port In China | Surface | Smooth Or Process According To Requirement |
| Length | Specific Length Required | Technique | Pultrusion Process |
| Product Name | GRP Products For Catenary | Certificate | CE/ISO9001 |
| High Light | High Voltage Catenary GRP Products,Grp Railway Rods High Voltage,Grp Railway Rods ForTramway |
||
Product Description
High Voltage Catenary GRP Products/ Grp Railway Rods For Tramway
Product
1.Material: GF-EP,UV Protection;
2.Environment Temperature:-50 ℃ to +80 ℃
1.The features of grp tramway rods for high voltage of catenary grp products for railway and tramway
Catenary GRP (Glass Reinforced Plastic) products are a type of composite material made from a combination of fine glass fibers and a polymer resin matrix, typically polyester or vinyl ester. They are commonly used in various industries for their high strength-to-weight ratio, corrosion resistance, and durability. They are also non-conductive,providing electrical insulation and minimizing the risk of electrical shocks. Additionally, GRP materials have excellent resistance to environmental factors such as weather, UV radiation, and chemicals, ensuring the longevity of the catenary system. Apart from railway applications, catenary GRP products are used in various other sectors such as construction, aerospace, automotive, marine, and renewable energy. In construction, they can be used for architectural features, cladding, and structural elements. In aerospace and automotive industries, GRP components are used to reduce weight and enhance fuel efficiency. In marine applications, they are utilized for boat hulls, decks, and other marine structures. In the renewable energy sector, catenary GRP products find use in wind turbine blades and support structures. Overall, catenary GRP products offer a versatile and reliable solution for various industries, combining the benefits of high strength, light weight, and resistance to corrosion and environmental factors.
2. Technical Character of grp tramway rods for high voltage of catenary grp products for railway and tramway:
| No. | Descnption of of Character | Value |
| 1 | Density | ≥2.1g/cm3 |
| 2 | Fiberglass Content | ≥78% |
| 3 | Water Absorption | ≤0.5% |
| 4 | Ambient temperature | -50°C to+80°C |
| 5 | Tensile Strength | ≥550N/mm² |
| 6 | Bending Strength | ≥550N/mm² |
| 7 | Compressive Strength | ≥400N/mm² |
| 8 | Elastic modulus | ≥40000N/mm² |
| 9 | Coefficient of linear thermal expansion(1/℃) | 10×10-6 |
3. The application of grp tramway rods for high voltage of catenary grp products for railway and tramway.
Applications of catenary GRP products is in the construction of overhead catenary systems (OCS) for railways and electrified transportation systems. Catenary GRP products are used to support and protect the electrical cables and wires that provide power to trains. These products include catenary wire supports, insulators, brackets, and other structural components. Catenary GRP products offer several advantages in this context. They are lightweight, making them easier to install and maintain.
FAQ:
1. Are you a manufacturer or a trader?
* We are a manufacturer, with 15 years of production experience;
* Our factory has passed ROSH, SGS certification;
* Standard: IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years of export experience.
*TID products have been exported to Indonesia, the United Kingdom, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa
Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select according to the above reference documents;
* Custom products: Please tell us
