GRP Catenary GRP Rod Products For Railway and Tramway
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | / |
| Minimum Order Quantity | 100 Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | Accept Customized | Fiberglass Content | ≥ 78% |
|---|---|---|---|
| Water Absorption | ≤ 0.5% | Application | Railway And Tramway |
| High Light | Tramway GRP Rod ISO9001,Catenary GRP Products rod,GRP Rod For Railway ISO9001 |
||
Product Description

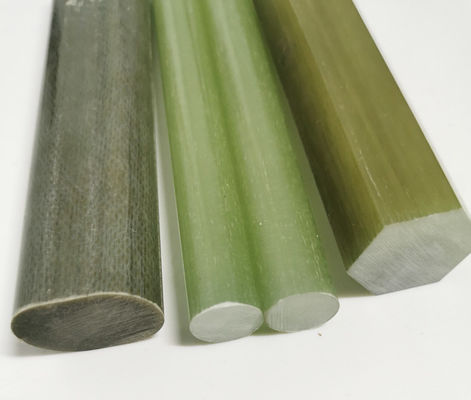

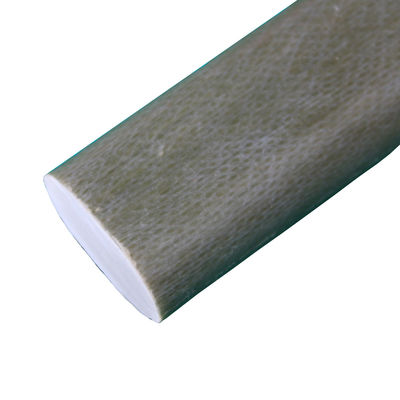

GRP Catenary GRP Rod Products For Railway and Tramway
GRP catenary products refer to the components used in the construction of catenary systems for
electrified railways or tramways. "GRP" stands for Glass Reinforced Plastic,which is a composite
material made of a plastic matrix reinforced with glass fibers.
1.Material: GF-EP, UV Resistance;
2.Environment Temperature: -50℃ to +80℃;
3.Technical Character:
| No. | Description of Character | Value |
| 1 | Density | ≥ 2.1g/cm³ |
| 2 | Fiberglass Content | ≥ 78% |
| 3 | Water Absorption | ≤0.5% |
| 4 | Ambient temperature | -50 °C to +80 °C |
| 5 | Tensile Strength | ≥550N/mm2 |
| 6 | Bending Strength | ≥500N/mm2 |
| 7 | Compressive Strength | ≥400N/mm2 |
| 8 | Elastic modulus | ≥40000N/mm2 |
| 9 | Coefficient of linear thermal expansion(1/℃) | 10×10-6 |
1. Dimension:
| No. |
Diameter (mm) |
Tolerance (mm) |
Weight (kg/m) |
Color |
| 1 | Round Rod Φ10 | ±0.20 | 0.16 | Orange, Grey, Olive or customized |
| 2 | Round Rod Φ26 | ±0.20 | 1.10 | Orange, Grey, Olive or customized |
| 3 | Round Rod Φ38 | ±0.20 | 2.30 | Orange, Grey, Olive or customized |
| 4 | Round Rod Φ42 | ±0.20 | 3.05 | Orange, Grey, Olive or customized |
| 5 | Round Rod Φ55 | ±0.20 | 4.90 | Orange, Grey, Olive or customized |

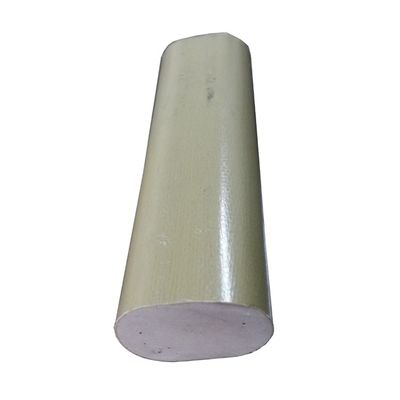

| 6 | Oval Rod 23×33 | ±0.20 | 1.28 | Orange, Grey, Olive or customized |
| 7 | We accept customized diameter ,length and color | |||
Product application in railway system
About Us
TID Power, who located in the high voltage transmission and distribution products center of Xi’an city, was founded in 1998. We are professional and experienced in manufacturing insulators and live line tools for power line and railways.
TID Power products include Polymer insulator up to DC800kV and live line tools for transmission line and distribution line. Our railway Insulators include railway /tramway polymer suspension/tension insulators 1.5KV,3kV and 25kV. railway /tramway polymer support insulators 1.5KV,3kV and 25kV. railway /tramway polymer cross arm insulators 3kV and 25kV, Loop Insulators for 1.5kV and 3kV, GRP rod, GRP tube and GRP foam filled tube for tramway catenary system.
TID Power attach great importance to technical innovation, we are glad to develop new products with our partner customers. The specialized patent products include loop insulators, foam filled fiberglass tubes for live line tools, GRP rods for railway catenary system.
TID Power is ISO 9001 qualified company. In order to ensure the quality, TID Power well supervise the raw material, the process and the finished products. TID Power make the main raw material of the products by ourselves, so we can control the raw material quality well.
We have our own laboratory which was built according to IEC standard. TID Power always take the products quality as the life of the company.
TID Power products have already supplied to more than 30 countries and regions. include America, Germany, Switzerland, Spain, French, Chile, Vietnam, Indonesia, Egypt, Morocco and so on.
FAQ
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Have own quality control.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.How to choose products?
*Standard products: Please select according to the above reference file;
*Customized product: please tell us
