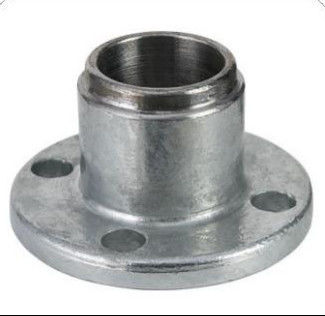

Flange End Fitting for Post Insulator
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | F |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | suitable packing for export,; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement. |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round/ Square | Application | Composite Insulator |
|---|---|---|---|
| Standard | IEC62231,ISO1461 | Material | HDG Steel |
| High Light | High Impact Resistance Isolation Flange,Isolation Flange Post Composite 120C,Composite Insulating Flange 120C |
||
Product Description
Standard Insulator Fittings Flange base for Post Composite Insulator
Product Description of Standard Insulator Fittings Flange base for Post Composite Insulator:
Insulator Fittings are made from high-quality materials, such as fiberglass rods, rubber, and galvanized steel threads, to ensure maximum durability and performance. The thickness and length of the fittings can be customized according to the customer’s requirements. All of our insulator fittings are designed to be highly resistant to harsh weather conditions and offer superior protection and reliability.
Post Insulator End Fitting
1.Applied Standard:IEC62231,ISO1461
2.Material: HDG steel.
3.Surface treatment: HDG with zinc thickness higher than 86 μm.
| No. | Products Code | Type |
L1 (mm) |
L2 (mm) |
OD (mm) |
ID (mm) |
D1 (mm) |
L3 (mm) |
| 1 | FT-2-U14.5-76-38-001 | FT | 45 | 35 | 50 | 38 | 2-U14.5 | 76 |
| 2 | F1-M12-/-32-001 | F1 | 51 | 29 | 48 | 32 | M12*16 | / |
| 3 | F1-M12-/-70-001 | F1 | 65 | 40 | 86 | 70 | M16*18 | / |
| 1 | F2AL-M10-26-26-001 | F2-Al | 60 | 40 | 37 | 26 | 2-M10*14 | 26 |
| 2 | F2-M10-30-34-001 | F2 | 50 | 25 | 48 | 34 | 2-M10*22 | 30 |
| 3 | F2-M8-29-34-001 | F2 | 40 | 27 | 40 | 34 | 2-M8*8 | 28 |
| 4 | F2-M8-29-36-001 | F2 | 56.5 | 36 | 50 | 36 | 2-M8*16 | 29 |
| 5 | F2-M8-29-45-001 | F2 | 57 | 37 | 58 | 45 | 2-M8*16 | 29 |
| 1 | F4-M38-57-32-001 | F4 | 52 | 40 | 48 | 32 | 4-M3/8*16 | 57 |
| 2 | F4-M12-76-32-001 | F4 | 42.5 | 34 | 50 | 32 | 4-M12*10 | 76 |
| 3 | F4-Φ13-76-32-001 | F4 | 50 | 40 | 48 | 32 | 4-Φ13*15 | 76 |
| 4 | F4-Φ13-76-34-001 | F4 | 70 | 60 | 48 | 34 | 4-Φ13*10 | 127 |
| 5 | F4-M12-76-34-001 | F4 | 42.5 | 34 | 50 | 34 | 4-M12*10 | 76 |
| 6 | F4-Φ13-127-34-001 | F4 | 46 | 34 | 48 | 34 | 4-Φ13*10 | 76 |
| 7 | F4-Φ11-76-32-001 | F4 | 62 | 50 | 52 | 36 | 4-Φ11*12 | 127 |
| 8 | F4-Φ13-76-38-001 | F4 | 66 | 56 | 54 | 38 | 4-Φ13*10 | 76 |
| 9 | F4-Φ13.5-76-45-001 | F4 | 42 | 32 | 54 | 38 | 4-Φ13.5*10 | 76 |
| 10 | F4-Φ10-76-45-001 | F4 | 42.5 | 32.5 | 55 | 45 | 4-Φ10*10 | 76 |
| 11 | F4-Φ10-76-45-002 | F4 | 60 | 48 | 55 | 45 | 4-Φ10*12 | 76 |
| 12 | F4-Φ10-76-45-003 | F4 | 57 | 47 | 58 | 45 | 4-Φ10*10 | 76 |
| 13 | F4-Φ18-127-45-001 | F4 | 60 | 51 | 63 | 45 | 4-Φ18*10 | 127 |
| 14 | F4-Φ12-76-50-001 | F4 | 65 | 50 | 63 | 50 | 4-Φ12*10 | 76 |
| 15 | F4-Φ18-127-68-001 | F4 | 100 | 85 | 90 | 68 | 4-Φ18*20 | 127 |
| 16 | F4-Φ18-127-70-001 | F4 | 65 | 53 | 90 | 70 | 4-18*28*15 | 127 |
| 17 | F4-Φ18-127-70-002 | F4 | 110 | 95 | 90 | 70 | 4-Φ18*15 | 127 |
| 18 | F4-M12-140-70-001 | F4 | 76 | 65 | 90 | 70 | 4-M12*20 | 140 |
| 19 | F4-M12-152-70-001 | F4 | 55 | 40 | 90 | 70 | 4-M12*15 | 152 |
| 20 | F4-M16-127-80-001 | F4 | 90 | 75 | 100 | 80 | 4-M16*15 | 127 |
| 1 | F8-Φ18-254-80-001 | F8 | 120 | 100 | 100 | 80 | 8-Φ18*20 | 254 |
