Insulation FRP Moulded Products Customized High Strength Square Frp Pipes
| Place of Origin | SHAAN XI, CHINA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | / |
| Minimum Order Quantity | 100.0 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | Suitable packing for export: Cartons+Wooden cases+Pallets+Wrapping Film |
| Payment Terms | L/C , T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Customized Frp Moulded Products,High Strength Frp Pipes,Square Frp Pipes |
||
|---|---|---|---|
Product Description

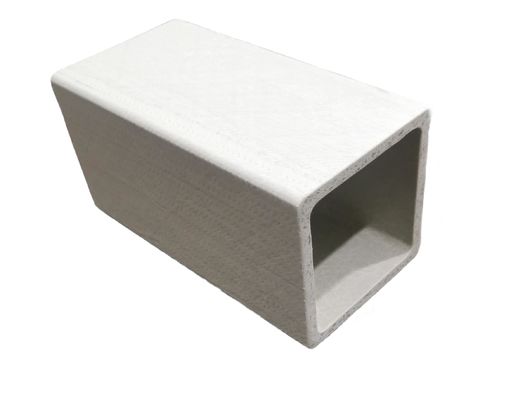

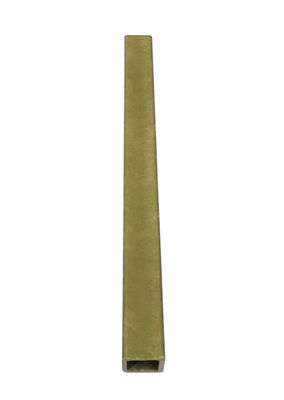

Insulation FRP Moulded Products Square Tubes Customized High Strength Square Tubes Frp Pipes
1. The production of Insulation FRP Moulded Products Square Tubes and Frp Pipes

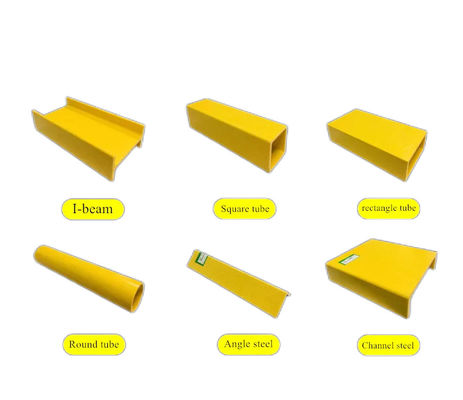

There are many kinds of FRP pultrusion profiles, glass fiber reinforced plastic round tube, glass fiber reinforced plastic square tube, glass fiber reinforced plastic rectangular tube, glass fiber reinforced plastic bar, glass fiber reinforced plastic I-beam.
The basic components of pultruded FRP profiles are resin and glass fiber (including cloth, felt, etc.), which is reinforced by fiber (including glass fiber, carbon fiber, fiber and other metal, non-metal fiber) and resin (mainly epoxy resin). Polyester resin, phenolic resin) is a binding agent, supplemented by other auxiliary materials (main auxiliary materials: release agent, curing agent, catalyst, sealing agent, UV light stabilizer, cleaning water, gelcoat, etc.) composite. It has a series of excellent characteristics such as high temperature resistance, resistance, high strength, small specific gravity, low moisture absorption, small extension and good insulation.
2. The TDS of fiberglass tube and FRP pipes
Table 1
| No. | Code | Dimension(mm) | No. | Code | Dimension(mm) |
| 1 | TPFST12×2.0×12×2.0 | 12×2.0×12×2.0 | 11 | TPFST50×4.0×50×4.0 | 50×4.0×50×4.0 |
| 2 | TPFST16.5×2.0×16.5×2.0 | 16.5×2.0×16.5×2.0 | 12 | TPFST53.5×3.0×53.5×3.0 | 53.5×3.0×53.5×3.0 |
| 3 | TPFST21×2.0×21×2.0 | 21×2.0×21×2.0 | 13 | TPFST60×3.0×60×3.0 | 60×3.0×60×3.0 |
| 4 | TPFST25×2.0×25×2.0 | 25×2.0×25×2.0 | 14 | TPFST70×3.0×70×3.0 | 70×3.0×70×3.0 |
| 5 | TPFST25.5×2.0×25.5×2.0 | 25.5×2.0×25.5×2.0 | 15 | TPFST75×3.0×75×3.0 | 75×3.0×75×3.0 |
| 6 | TPFST27.5×4.2×27.5×4.2 | 27.5×4.2×27.5×4.2 | 16 | TPFST80×3.0×80×3.0 | 80×3.0×80×3.0 |
| 7 | TPFST30×3.0×30×3.0 | 30×3.0×30×3.0 | 17 | TPFST80×3.0×80×3.0 | 90×3.0×90×3.0 |
| 8 | TPFST34×3.0×34×3.0 | 34×3.0×34×3.0 | 18 | TPFST100×3.0×100×3.0 | 100×3.0×100×3.0 |
| 9 | TPFST40×3.0×40×3.0 | 40×3.0×40×3.0 | 19 | TPFST203.2×3.0×203.2×3.0 | 203.2×3.0×203.2×3.0 |
| 10 | TPFST50×3.0×50×3.0 | 50×3.0×50×3.0 |
Table 2
| No. | Code | Dimension(mm) | No. | Code | Dimension(mm) |
| 1 | TPFST18×2.0×19×2.0 | 18×2.0×19×2.0 | 8 | TPFST80×3.0×50×3.0 | 80×3.0×50×3.0 |
| 2 | TPFST40×2.5×30×2.5 | 40×2.5×30×2.5 | 9 | TPFST80×3.0×60×3.0 | 80×3.0×60×3.0 |
| 3 | TPFST50×3.0×20×3.0 | 50×3.0×20×3.0 | 10 | TPFST100×3.0×50×3.0 | 100×3.0×50×3.0 |
| 4 | TPFST50×6.5×30×6.5 | 50×6.5×30×6.5 | 11 | TPFST110×4.0×80×4.0 | 110×4.0×80×4.0 |
| 5 | TPFST50×4.0×50×4.0 | 50×4.0×50×4.0 | 12 | TPFST117×10.0×92×10.0 | 117×10.0×92×10.0 |
| 6 | TPFST60×3.0×12×3.0 | 60×3.0×12×3.0 | 13 | TPFST160×5.0×60×5.0 | 160×5.0×60×5.0 |
| 7 | TPFST78×3.0×26×3.0 | 78×3.0×26×3.0 |
FRP molded products are widely used in various fields due to their advantages of high strength, lightweight, corrosion resistance, good insulation performance, and high design freedom, and have obvious advantages in many scenarios where traditional materials cannot meet the requirements
FAQ:
Q1: What is the Brand Name of this Insulation Fiberglass Pultrusion Profile?
A1: The Brand Name of this Insulation Fiberglass Pultrusion Profile is TID POWER.
Q2: Where is the Place of Origin of this Insulation Fiberglass Pultrusion Profile?
A2: The Place of Origin of this Insulation Fiberglass Pultrusion Profile is CN;SHAAN XI.
Q3: What is the Certification of this Insulation Fiberglass Pultrusion Profile?
A3: The Certification of this Insulation Fiberglass Pultrusion Profile is ISO9001:2008.
