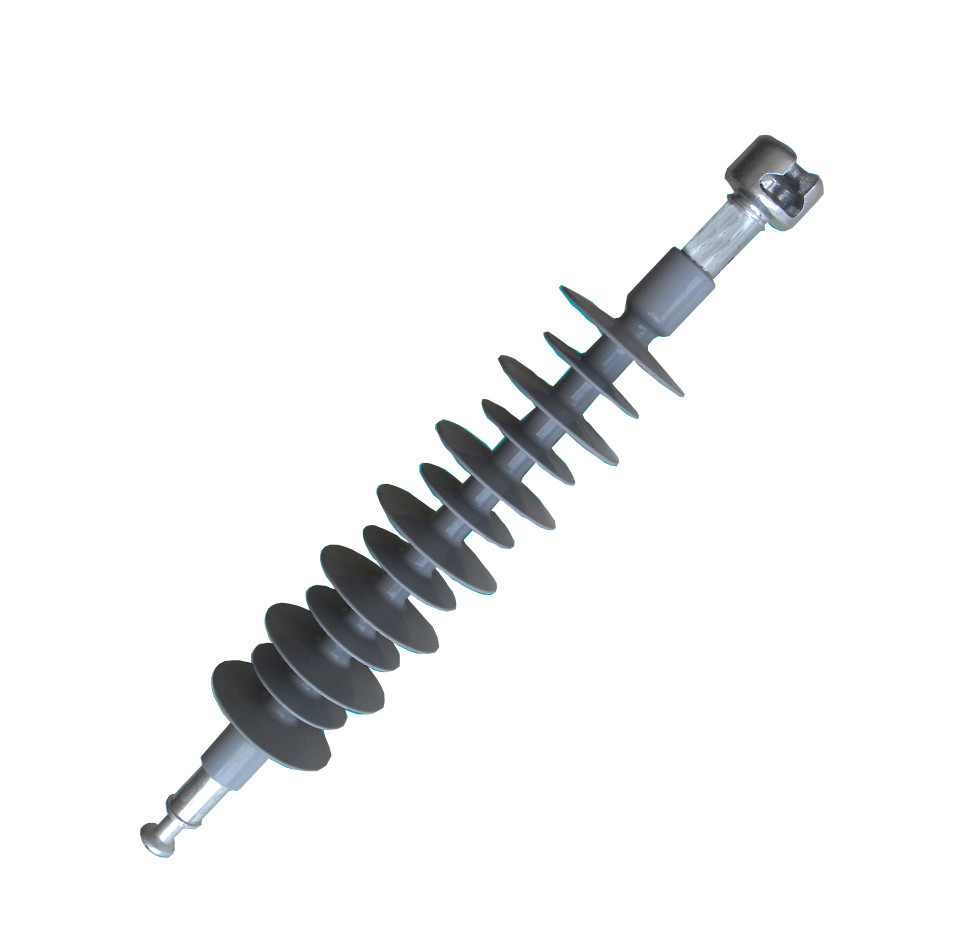

PA6 Post Silicone Rubber Insulator
| Place of Origin | CN;SHA |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001:2008 |
| Model Number | IPS |
| Minimum Order Quantity | 100 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | 1. Economic Packing desgin which will save your transportation cost. 2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Strength | High Strength | Brand | TID POWER |
|---|---|---|---|
| UV | Yes,UV Resistance | Port | Shanghai Or Other Port In China |
| Coat | SIlicone HTV | Silicone Colour | Grey |
| Highlight | Uv Flame Retardant Silicone Rubber Insulator,Industrial Silicone Rubber Insulator 60kv,Overhead Insulators For Industrial 60kv |
||
Product Description
PA6 Post Silicone Rubber Insulator
General data
• Specified cantilever load (SCL): 15 kN
• Ambient temperature range: T = -60 °C … +85 ºC
• Coat: silicone HTV
• Silicone colour: grey
• Material of top fitting: PA6, UV stabilized
• Material of steel end fitting: HDG steel
• Connector thread on bottom: M20 or M24
• Average layer of zinc: ≥ 85 µm
• Tested according to standards: IEC 62217, IEC 61952
PA6 Post Silicone Rubber Insulator
PA6 insulator without a clamp
| Type |
Rated Voltage (kV) |
Specified Mechanical Load(SML) (kN) |
Leakage Distance L(mm) |
Dry Arcing Distance (mm) |
P.F. Withstand Voltage Min,Wet (≧kV) |
Lightning Impulse Withstand Voltage (≧kV) |
| IPS 15-24-600 | 24 | 15 | 587 | 270 | 65 | 155 |
| IPS 15-24-700 | 24 | 15 | 716 | 265 | 75 | 175 |
| IPS 15-38-870 | 38 | 15 | 945 | 305 | 85 | 185 |
| IPS 15-38-1100 | 38 | 15 | 1153 | 365 | 105 | 250 |
PA6 insulator with spring clamp
| Type |
Rated Voltage (kV) |
Specified Mechanical Load (SML) (kN) |
Leakage Distance L(mm) |
Dry Arcing Distance (mm) |
P.F. Withstand Voltage Min,Wet (≧kV) |
Lightning Impulse Withstand Voltage (≧kV) |
| IPS 15-24-600-FC | 24 | 15 | 565 | 265 | 70 | 175 |
| IPS 15-24-700-FC | 24 | 15 | 695 | 265 | 75 | 175 |
| IPS 15-38-870-FC | 38 | 15 | 923 | 305 | 85 | 185 |
| IPS 15-38-1100-FC | 38 | 15 | 1131 | 365 | 105 | 250 |
PA6 insulator with screw clamp
| Type |
Rated Voltage (kV) |
Specified Mechanical Load (SML) (kN) |
Leakage Distance L(mm) |
Dry Arcing Distance (mm) |
P.F. Withstand Voltage Min,Wet (≧kV) |
Lightning Impulse Withstand Voltage (≧kV) |
| IPS 15-24-600-SFC | 24 | 15 | 567 | 265 | 65 | 155 |
| IPS 15-24-700-SFC | 24 | 15 | 695 | 265 | 75 | 175 |
| IPS 15-38-870-SFC | 38 | 15 | 923 | 305 | 85 | 185 |
| IPS 15-38-1100-SFC | 38 | 15 | 1131 | 365 | 105 | 250 |
Packing and Shipping:
Packaging and Shipping for Overhead Line Insulator
Packaging: The overhead line insulator will be packaged in a wooden box, lined with foam and plastic film to ensure that the product is protected during transit.
Shipping: The overhead line insulator will be shipped using a reliable courier service. The product will be delivered in a timely and secure manner.
FAQ:
Q1: What is the Brand Name of your Overhead Line Insulator?
A1: Our Overhead Line Insulator is TID POWER.
Q2:What is the Model Number of your Overhead Line Insulator?
A2: Our Overhead Line Insulator is T0312.
Q3:Where is your Overhead Line Insulator made?
A3:Our Overhead Line Insulator is made in China.
Q4:What certifications does your Overhead Line Insulator have?
A4:Our Overhead Line Insulator is ISO9001:2008 certified.
Q5:What is the Minimum Order Quantity for your Overhead Line Insulator?
A5:The Minimum Order Quantity for our Overhead Line Insulator is 100 Piece/Pieces.
