69kV -400kV Composite Overhead Line Insulator
| Place of Origin | CN;SHAAN XI |
|---|---|
| Brand Name | TID POWER |
| Certification | ISO9001 |
| Model Number | FXBW |
| Minimum Order Quantity | 100 Piece/Pieces |
| Price | Negotiate |
| Packaging Details | 1. Economic Packing desgin which will save your transportation cost. 2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Type | Composite / Polymer Insulator | Application | High Voltage |
|---|---|---|---|
| Product Name | 69kV -400kV Composite Overhead Line Insulator | Tensile Strength | Superior |
| Port | Shanghai, Or Any Port In China | End Fitting Type | Socket,ball,eye,clevis,tongue,Y-clevis Ect. |
| High Light | 35kv Composite Overhead Line Insulator,Overhead Line Insulator All Pollution Area,35kv Polymer Suspension Insulator |
||
Product Description

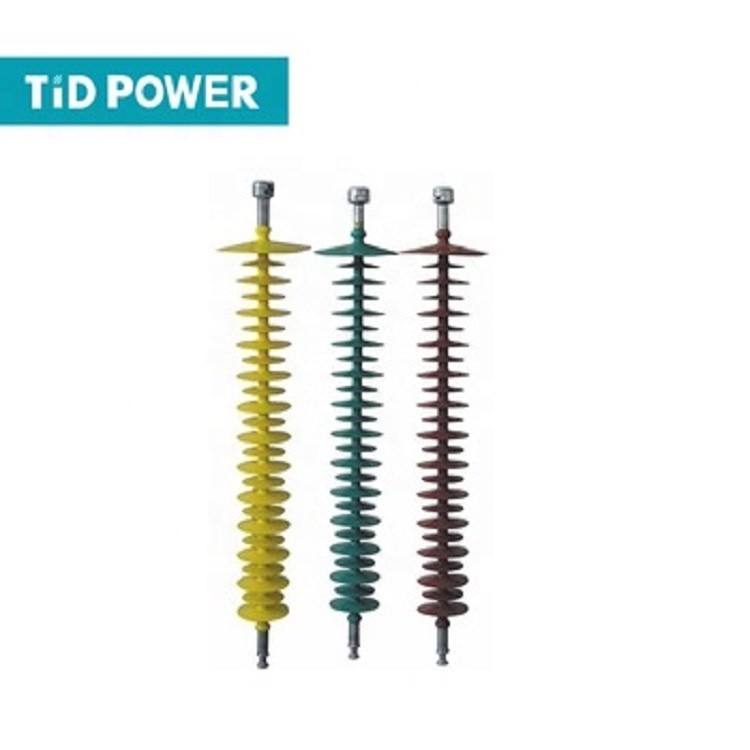

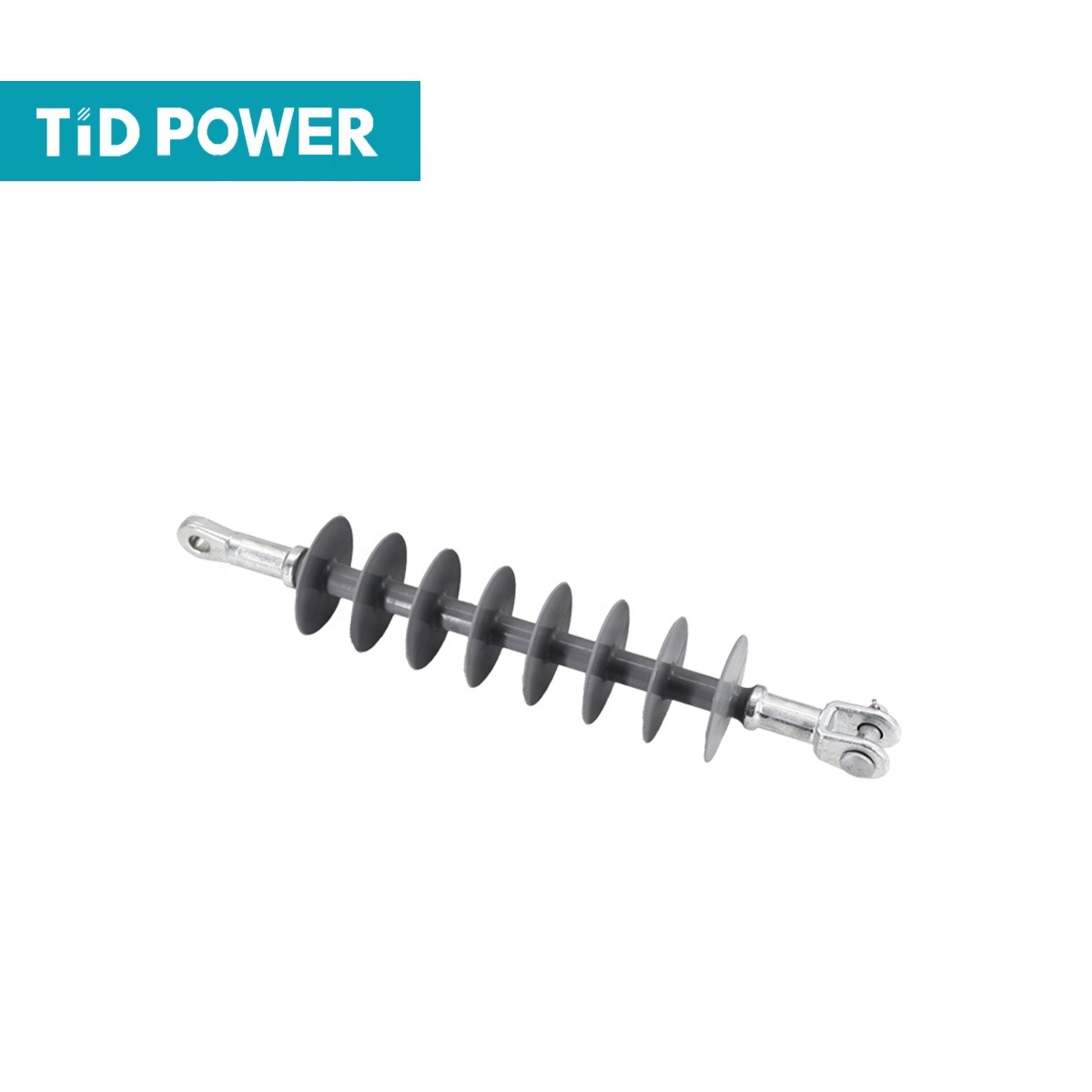

69kV -400kV Composite Overhead Line Insulator
Product:
1.Product Description of 69kV -400kV Composite Overhead Line Insulator
The composite suspended edge has the characteristic of zero value self breaking. As long as it is observed on the ground or on a helicopter, there is no need to climb the pole for piece by piece inspection, reducing the labor intensity of workers.
The product introduced from the production line has an annual self breaking rate of 0.02-0.04%, which can save maintenance costs on the line. Good arc resistance and vibration resistance. During operation, the new surface of the glass insulator that is burned by lightning is still a smooth glass body with a tempered internal stress protection layer. Therefore, it still maintains sufficient insulation and mechanical strength.
Multiple disasters caused by conductor icing on 500 kV lines have caused galloping, and the composite suspension insulator subjected to conductor galloping has not experienced any degradation in mechanical and electrical performance after testing.
2.Produc performance of 69kV -400kV Composite Overhead Line Insulator
1. High mechanical strength.
2. Good performance of hydrophobicity and anti-pollution
3. Excellent electrical specification
4. Small volume and light weight

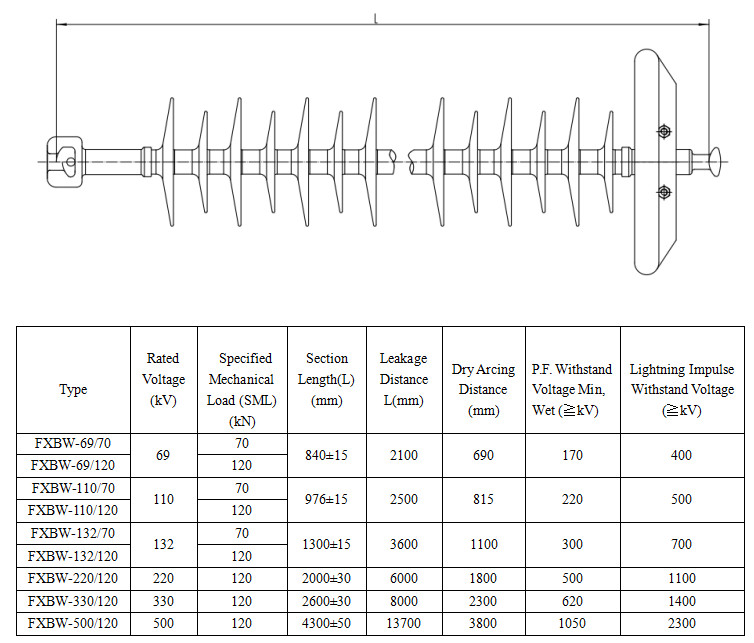

3. Product Details of 69kV -400kV Composite Overhead Line Insulator
| Type | Rated Voltage (KV) |
SML (KN) |
Section Length H(mm) |
Min Arcing Distance h(mm) |
Min Nominal Creepage Distance L(mm) |
Lightning Impulse Withstand Voltage (KV) | Power Frequency with stand voltage (KV) |
| FXBW-69/70 | 69 | 70 | 680±10 | 495 | 1440 | 390 | 185 |
| FXBW-69/120 | 69 | 120 | 860±15 | 650 | 2100 | 415 | 235 |
| FXBW-132/70 | 132 | 70 | 1360±30 | 1150 | 3600 | 740 | 320 |
| FXBW-132/120 | 132 | 120 | 1400±30 | 1150 | 3600 | 740 | 320 |
| FXBW-132/160 | 132 | 160 | 1430±30 | 1150 | 4800 | 740 | 440 |
| FXBW-132/210 | 132 | 210 | 1470±30 | 1150 | 4800 | 740 | 440 |
| FXBW-132/240 | 132 | 240 | 1470±30 | 1150 | 4800 | 740 | 440 |
| FXBW-220/70 | 220 | 70 | 2280±30 | 2050 | 6820 | 1050 | 460 |
| FXBW-220/120 | 220 | 120 | 2310±30 | 2050 | 6820 | 1050 | 460 |
| FXBW-220/160 | 220 | 160 | 2350±30 | 2050 | 9600 | 1050 | 460 |
| FXBW-220/210 | 220 | 210 | 2390±30 | 2050 | 9600 | 1050 | 460 |
| FXBW-220/240 | 220 | 240 | 2390±30 | 2050 | 9600 | 1050 | 460 |
| FXBW-400/120 | 400 | 120 | 3680±30 | 3420 | 12300 | 1480 | 625 |
| FXBW-400/160 | 400 | 160 | 3745±30 | 3420 | 13060 | 1480 | 625 |
| FXBW-400/210 | 400 | 210 | 3785±30 | 3420 | 13060 | 1480 | 625 |
| FXBW-400/240 | 400 | 240 | 3785±30 | 3420 | 13060 | 1480 | 625 |
| FXBW-500/120 | 500 | 120 | 4760±30 | 4500 | 16200 | 1900 | 900 |
| FXBW-500/160 | 500 | 160 | 4820±30 | 4500 | 15500 | 1900 | 900 |
| FXBW-500/210 | 500 | 210 | 4860±30 | 4500 | 15500 | 1900 | 900 |
| FXBW-500/240 | 500 | 240 | 4860±30 | 4500 | 15500 | 1900 | 900 |
Note:
1. Applied standard:IEC61109.
2. Please select the fitting type when you order,The insulator info in the table belowbased on the type with ball & socket fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.
3. We suggest that you chose the arcing ring when the insulator above 132kV.
FAQ:
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 216000 units per year.
Choose us, we will provide you with a full range of technical services!
We warmly welcome you to join us!
We are eager to maintain permanent cooperation with you!
